FlexLöve is a flexible GUI library for Löve2D that implements a flexbox-based layout system. The goals of this project are two-fold, first, to make a UI library that anyone with basic CSS knowledge can run with a minimal learning curve, and second, to have a single library take you from early prototyping to production easily and gradually.

Features

Flexbox Layout: Modern flexbox layouts for UI elements with full flex properties
Grid Layout: CSS-like (but simplified) grid system for structured layouts
Element Management: Hierarchical element structures with automatic sizing
Interactive Elements: Buttons with click detection, event system, and callbacks
Theme System: 9-patch (NinePatch) theming with state support (normal, hover, pressed, disabled)
Android 9-Patch Auto-Parsing: Automatic parsing of *.9.png files with multi-region support
Animations: Built-in animation support for transitions and effects
Image Support: CSS-like object-fit, object-position, tiling/repeat modes, tinting, and opacity control
Responsive Design: Automatic resizing with viewport units (vw, vh, %)
Color Handling: Utility classes for managing colors in various formats
Text Rendering: Flexible text display with alignment and auto-scaling
Corner Radius: Rounded corners with individual corner control
Advanced Positioning: Absolute, relative, flex, and grid positioning modes
(Warning - Alpha-stages - Not yet tested) Multi-Touch & Gestures: Touch event tracking, gesture recognition (tap, double-tap, long-press, swipe, pan, pinch, rotate), and touch scrolling with momentum/bounce

Quick Start

[Recommended] Go to the releases page and download the latest release, there are a few different options for different build profiles, I recommend the "default" build. Then add the modules directory and FlexLove.lua into your project.

Or, you can also install with luarocks:

luarocks install flexlove

Going this route, you will need to link the luarocks path to your project: (for mac/linux)

package.path = package.path .. ";/Users/<username>/.luarocks/share/lua/<version>/?.lua"
package.path = package.path .. ";/Users/<username>/.luarocks/share/lua/<version>/?/init.lua"
package.cpath = package.cpath .. ";/Users/<username>/.luarocks/lib/lua/<version>/?.so"

local FlexLove = require("FlexLove")

function love.load()
  -- (Optional) Initialize with a theme and immediate mode
  FlexLove.init({
    theme = "space",
    immediateMode = true
  })
end

function love.update(dt)
  FlexLove.update(dt)
end

function love.draw()
    FlexLove.draw(function()
        -- Game content (will be blurred by backdrop blur)
        local button = FlexLove.new({
        width = "20vw",
        height = "10vh",
        backgroundColor = Color.new(0.2, 0.2, 0.8, 1),
        text = "Click Me",
        textSize = "md",
        themeComponent = "button",
        onEvent = function(element, event)
            print("Button clicked!")
    end
    })
    end, function()
        -- This is drawn AFTER all GUI elements - no backdrop blur
        SomeMetaComponent:draw()
    end)
end

Quick Demos

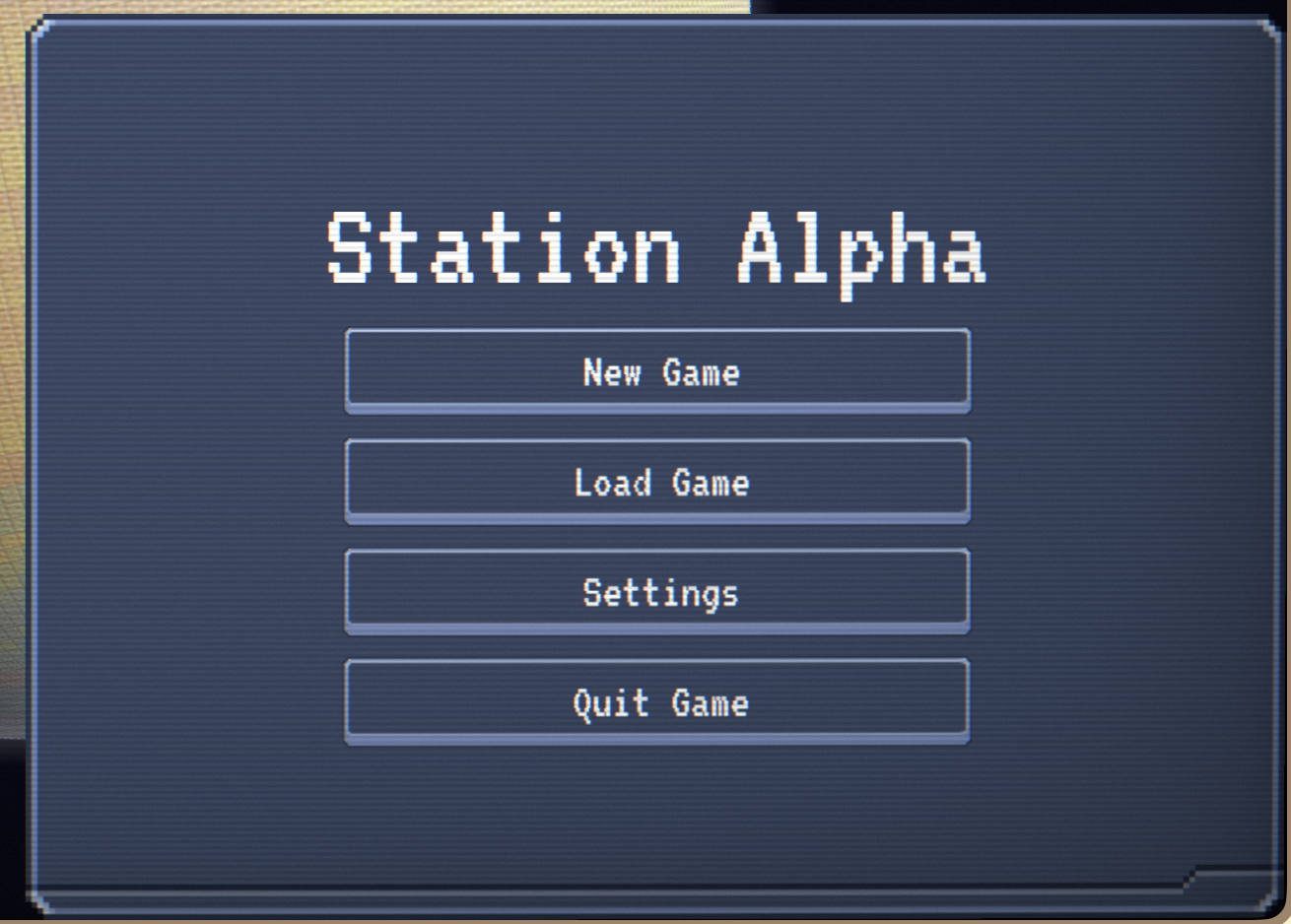

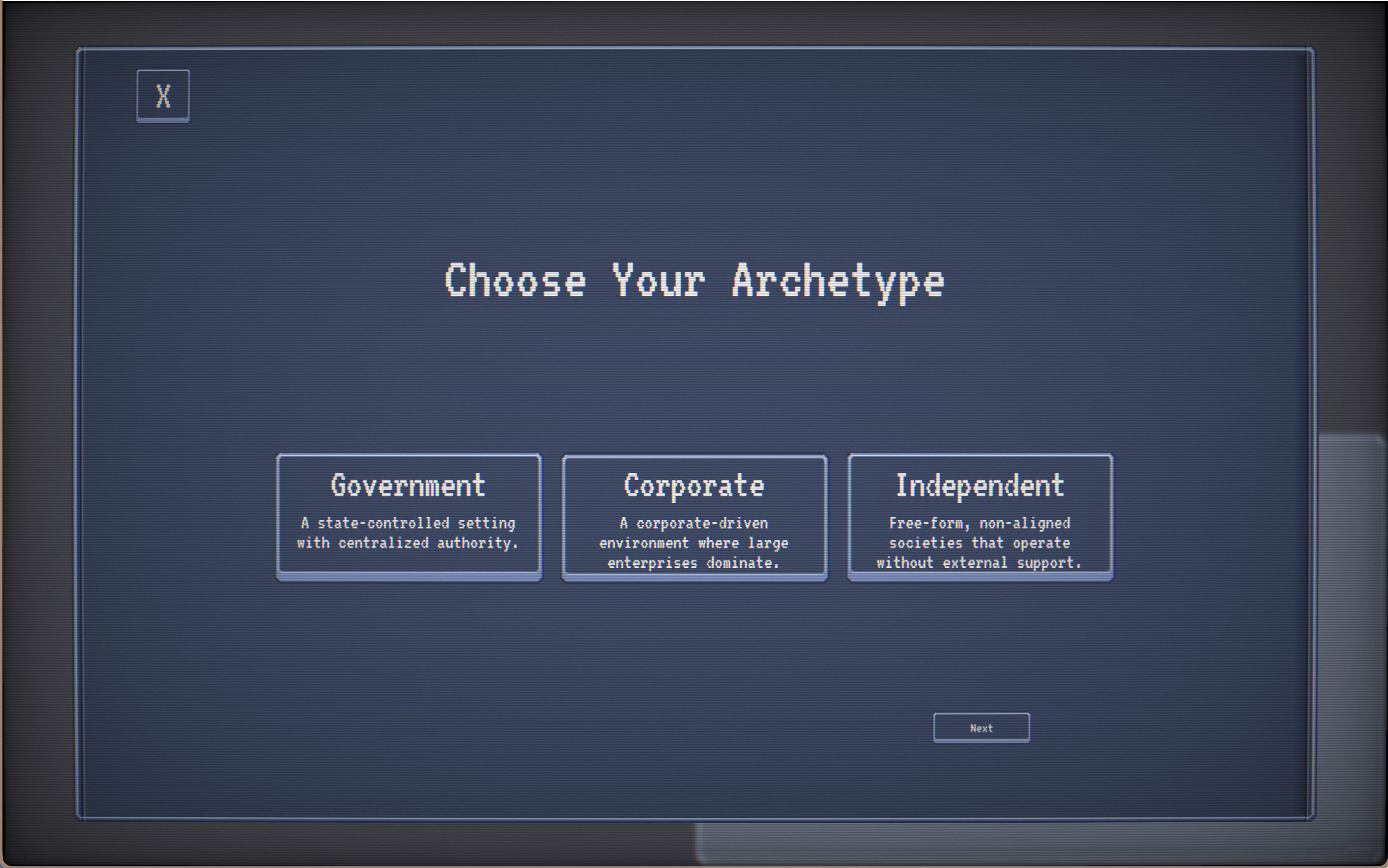

All of the following use the metal theme

https://github.com/user-attachments/assets/39d958ce-f9e6-4ac6-9920-ac512f4612e9

https://github.com/user-attachments/assets/00984a74-c59b-4030-b6eb-65d08b9655e6

https://github.com/user-attachments/assets/922b38eb-a186-4a1a-b748-aa7815203f1a

https://github.com/user-attachments/assets/9840f61b-4f60-4f63-ab3b-912c7da7ad14

https://github.com/user-attachments/assets/388e0f59-8f93-420a-8b4c-efb9bccab251

Build Profiles

FlexLöve supports optional modules to reduce bundle size for different use cases. Simply exclude module files you don't need - the library handles missing modules gracefully with null-object stubs.

Available Profiles

Minimal (~60%) - Core functionality only (layouts, basic elements, text)
Slim (~80%) - Adds animations and image support
Default (~95%) - Adds themes, blur effects, and gestures
Full (100%) - Everything including performance monitoring

Documentation

📚 View Full API Documentation

Complete API reference with all classes, methods, and properties is available on GitHub Pages. The documentation includes:

Searchable sidebar navigation
Syntax-highlighted code examples
Version selector (access docs for previous versions)
Detailed parameter and return value descriptions

Documentation Versions

Access documentation for specific versions:

Latest: https://mikefreno.github.io/FlexLove/api.html
Specific version: https://mikefreno.github.io/FlexLove/versions/v0.2.0/api.html

Core Concepts

The Most Basic

There are no "prebuilt" components - there is just an Element. Think of it as everything being a <div> in html. The Element can be anything you need - a container window, a button, an input field. It can also be combined to make more complex fields, like a sliders. The way to make these are just by setting the properties needed. onEvent can be used to make buttons, editable can be used to create input fields. You can check out the examples/ to see complex utilization.

Immediate Mode vs Retained Mode

FlexLöve supports both immediate mode and retained mode UI paradigms, giving you flexibility in how you structure your UI code:

Retained Mode (Default)

In retained mode, you create elements once and they persist across frames. The library manages the element hierarchy, but you must manage changes in element state by .

local someGameState = true
-- Create elements once (e.g., in love.load)
local button1 = FlexLove.new({
  text = "Button 1",
  disabled = someGameState,
  onEvent = function() print("Clicked!") end
})
-- ... other things ... --
local someGameState = false  -- button1 will not change its disabled state, you need a way to update the element

local button2 = FlexLove.new({
  text = "Click to activate button 1",
  onEvent = function(_, event)
    if event.type == "release" then -- only fire on mouse release
      button1.disabled = false -- this will actual update the element
    end
  end
})
-- ... other things ... --
local someGameState = false  -- button1 will not change its disabled state, you need a way to update the element

local button2 = FlexLove.new({
  text = "Click to activate button 1",
  onEvent = function(_, event)
    if event.type == "release" then -- only fire on mouse release
      button1.disabled = false -- this will actual update the element
    end
  end
})

Immediate Mode

In immediate mode, you recreate UI elements every frame based on your application state. This approach can be simpler for dynamic UIs that change frequently. There is of course some overhead for this, which is why it is not the default behavior.

-- Recreate UI every frame
local someGameState = true
-- Create elements once (e.g., in love.load)
local button1 = FlexLove.new({
  text = "Button 1",
  disabled = someGameState,
  onEvent = function() print("Clicked!") end
})
-- ... other things ... --
local someGameState = false  -- button1 in immediate mode will have its state updated

local button2 = FlexLove.new({
  text = "Click to activate button 1",
  onEvent = function(_, event)
    if event.type == "release" then -- only fire on mouse release
      button1.disabled = false -- this will also update the element
    end
  end
})

Per-Element Mode Override

You can override the rendering mode on a per-element basis using the mode property. This allows you to mix immediate and retained mode elements in the same application:

-- Initialize in immediate mode globally
FlexLove.init({ immediateMode = true })

function love.draw()
  FlexLove.beginFrame()

  -- This button uses immediate mode (follows global setting)
  local dynamicButton = FlexLove.new({
    text = "Frame: " .. love.timer.getTime(),
    onEvent = function() print("Dynamic!") end
  })

  -- This panel uses retained mode (override with mode prop)
  -- It will persist and won't be recreated each frame
  local staticPanel = FlexLove.new({
    mode = "retained",  -- Explicit override
    width = "30vw",
    height = "40vh",
    backgroundColor = Color.new(0.2, 0.2, 0.2, 1),
  })

  FlexLove.endFrame()
end

Layout Modes

Absolute Positioning

local element = FlexLove.new({
  positioning = "absolute",
  x = 100,
  y = 50,
  width = 200,
  height = 100
})

Flexbox Layout

local container = FlexLove.new({
  positioning = "flex",
  flexDirection = "horizontal",
  justifyContent = "center",
  alignItems = "center",
  gap = 10
})

Grid Layout

local grid = FlexLove.new({
  positioning = "grid",
  gridRows = 3,
  gridColumns = 3,
  rowGap = 10,
  columnGap = 10
})

Theme System

To create a theme explore themes/space.lua as a reference

Load and apply themes for consistent styling:

FlexLove.init({
  theme = "space" -- will use this as the initial theme
})

-- and if you need dynamic themes
local Theme = FlexLove.Theme
Theme.load("metal")
Theme.setActive("metal")

-- Use theme on elements
local button = Flexlove.new({
  width = 200,
  height = 60,
  text = "Themed Button",
  themeComponent = "button",  -- Uses "button" component from active theme
  backgroundColor = Color.new(0.5, 0.5, 1, 0.3)  -- Renders behind theme
})

9-Patch Support

FlexLove automatically parses Android-style 9-patch (*.9.png) files:

-- Theme definition with auto-parsed 9-patch
{
  name = "My Theme",
  components = {
    button = {
      atlas = "themes/mytheme/button.9.png"
      -- insets automatically extracted from 9-patch borders
      -- supports multiple stretch regions for complex scaling
    },
    panel = {
      atlas = "themes/mytheme/panel.png",
      insets = { left = 20, top = 20, right = 20, bottom = 20 }
      -- manual insets still supported (overrides auto-parsing)
    }
  }
}

9-Patch Format:

Files ending in .9.png are automatically detected and parsed
Guide pixels are automatically removed - the 1px border is stripped during loading
Top/left borders define stretchable regions (black pixels)
Bottom/right borders define content padding (optional) - automatically applied to child positioning
Supports multiple non-contiguous stretch regions
Manual insets override auto-parsing when specified

Scaling Corners:

{
  button = {
    atlas = "themes/mytheme/button.9.png",
    scaleCorners = 2  -- Scale corners by 2x (number = direct multiplier)
  }
}

scaleCorners accepts a number (e.g., 2 = 2x size, 0.5 = half size)
Default: nil (no scaling, 1:1 pixel perfect)
Corners scale uniformly while edges stretch as defined by guides

Themes support state-based rendering:

normal - Default state
hover - Mouse over element
pressed - Element being clicked
disabled - Element is disabled
active - Element is active/focused

Event System

Enhanced event handling with detailed event information:

onEvent = function(element, event)
  -- Mouse events:
  -- event.type: "click", "press", "release", "rightclick", "middleclick"
  -- event.button: 1 (left), 2 (right), 3 (middle)
  -- event.x, event.y: Mouse position
  -- event.clickCount: Number of clicks (for double-click detection)
  -- event.modifiers: { shift, ctrl, alt, gui }

  -- Touch events:
  -- event.type: "touchpress", "touchmove", "touchrelease", "touchcancel"
  -- event.touchId: Unique identifier for this touch
  -- event.pressure: Touch pressure (0.0-1.0)
  -- event.phase: "began", "moved", "ended", or "cancelled"

  if event.type == "click" and event.modifiers.shift then
    print("Shift-clicked!")
  elseif event.type == "touchpress" then
    print("Touch began at:", event.x, event.y)
  end
end

Multi-Touch Support:

FlexLöve provides comprehensive multi-touch event tracking and gesture recognition. See the Multi-Touch Documentation for:

Touch event handling
7 gesture types (tap, double-tap, long-press, swipe, pan, pinch, rotate)
Touch scrolling with momentum and bounce effects
Complete API reference and examples

Deferred Callbacks

Some LÖVE operations (like love.window.setMode) cannot be called while a Canvas is active. FlexLöve provides a deferred callback system to handle these operations safely:

-- In your event handler, queue the callback:
onEvent = function(element, event)
  if event.type == "click" then
    FlexLove.deferCallback(function()
      love.window.setMode(1920, 1080, { fullscreen = true })
    end)
  end
end

-- In your love.draw(), execute callbacks after ALL canvases are released:
function love.draw()
  love.graphics.setCanvas(myCanvas)
  FlexLove.draw()
  love.graphics.setCanvas() -- Release ALL canvases

  -- Execute deferred callbacks now that no canvas is active
  FlexLove.executeDeferredCallbacks()
end

IMPORTANT: You must call FlexLove.executeDeferredCallbacks() at the very end of your love.draw() function after releasing all canvases. This ensures callbacks execute in a safe context.

Automatic Deferral with `onEventDeferred`

Instead of manually wrapping callbacks with FlexLove.deferCallback(), you can set the onEventDeferred flag to automatically defer all callbacks for that handler:

FlexLove.Element.new({
  width = 200,
  height = 50,
  text = "Change Resolution",
  onEvent = function(element, event)
    if event.type == "click" then
      -- This will be automatically deferred!
      love.window.setMode(1920, 1080, { fullscreen = true })
    end
  end,
  onEventDeferred = true  -- Automatically defer all onEvent callbacks
})

This flag is available for all event callbacks:

onEventDeferred - Defers onEvent callback
onFocusDeferred - Defers onFocus callback
onBlurDeferred - Defers onBlur callback
onTextInputDeferred - Defers onTextInput callback
onTextChangeDeferred - Defers onTextChange callback
onEnterDeferred - Defers onEnter callback

Deferred callbacks are useful for:

Changing window mode/resolution
Loading resources that modify graphics state
Any operation that conflicts with active canvas rendering

Input Fields

FlexLöve provides text input support with single-line (and multi-line coming soon) fields:

-- Create a text input field
local input = FlexLove.new({
  x = 10,
  y = 10,
  width = 200,
  height = 30,
  editable = true,
  text = "Type here...",
  placeholder = "Enter text",
  textColor = Color.new(1, 1, 1, 1),
  onTextChange = function(element, newText, oldText)
    print("Text changed:", newText)
  end
})

local textArea = FlexLove.new({
  x = 10,
  y = 50,
  width = 300,
  height = 150,
  editable = true,
  multiline = true,
  text = "",
  placeholder = "Enter multiple lines..."
})

Important: To enable key repeat for navigation keys (arrows, backspace, delete), add this to your love.load():

function love.load()
  love.keyboard.setKeyRepeat(true)
end

Input Properties:

editable - Enable text input (default: false)
multiline - Allow multiple lines (default: false)
placeholder - Placeholder text when empty
maxLength - Maximum character count
passwordMode - Hide text with bullets
selectOnFocus - Select all text when focused

Input Callbacks:

onTextChange(element, newText, oldText) - Called when text changes
onTextInput(element, text) - Called for each character input
onEnter(element) - Called when Enter is pressed (single-line only)
onFocus(element) - Called when input gains focus
onBlur(element) - Called when input loses focus

Features:

Cursor positioning and blinking
Text selection (mouse and keyboard)
Copy/Cut/Paste (Ctrl+C/X/V)
Word navigation (Ctrl+Arrow keys)
Select all (Ctrl+A)
Automatic text scrolling to keep cursor visible
UTF-8 support

Responsive Units

Support for viewport-relative units:

local element = FlexLove.new({
  width = "50vw",   -- 50% of viewport width
  height = "30vh",  -- 30% of viewport height
  x = "25%",        -- 25% of parent width
  textSize = "3vh"  -- 3% of viewport height
})

Dynamic Calculations with calc()

Use calc() for CSS-like dynamic calculations in layout properties:

-- Center a button horizontally (accounting for its width)
local button = FlexLove.new({
  x = FlexLove.calc("50% - 10vw"),  -- Centers a 20vw wide button
  y = "50vh",
  width = "20vw",
  height = "10vh",
  text = "Centered Button"
})

-- Complex calculations with multiple operations
local sidebar = FlexLove.new({
  width = FlexLove.calc("100vw - 300px"),  -- Full width minus fixed sidebar
  height = FlexLove.calc("100vh - 50px"),  -- Full height minus header
  x = "300px",
  y = "50px"
})

-- Using parentheses for order of operations
local panel = FlexLove.new({
  width = FlexLove.calc("(100vw - 40px) / 3"),  -- Three equal columns with 40px total padding
  padding = { left = "10px", right = "10px" }
})

Supported operations: +, -, *, /
Supported units: px, %, vw, vh, ew, eh
Note: Element width/height units (ew, eh) cannot be used in position calculations (x, y) due to circular dependencies.

Animations

Create smooth transitions:

local Animation = FlexLove.Animation

-- Fade animation
local fadeIn = Animation.fade(1.0, 0, 1)
fadeIn:apply(element)

-- Scale animation
local scaleUp = Animation.scale(0.5,
  { width = 100, height = 50 },
  { width = 200, height = 100 }
)
scaleUp:apply(element)

-- Custom animation with easing
local customAnim = Animation.new({
  duration = 1.0,
  start = { opacity = 0, width = 100 },
  final = { opacity = 1, width = 200 },
  easing = "easeInOutCubic"
})
customAnim:apply(element)

Images

Display images with CSS-like object-fit and positioning:

local Gui = FlexLove.Gui

-- Basic image display
local imageBox = Gui.new({
  width = 200,
  height = 200,
  imagePath = "assets/photo.jpg",
  objectFit = "cover",          -- fill, contain, cover, scale-down, none
  objectPosition = "center center", -- positioning within bounds
  imageOpacity = 1.0,
  imageTint = Color.new(1, 1, 1, 1), -- optional color tint
})

Object-fit modes:

fill - Stretch to fill (may distort)
contain - Fit within bounds (preserves aspect ratio)
cover - Cover bounds (preserves aspect ratio, may crop)
scale-down - Use smaller of none or contain
none - Natural size (no scaling)

Object-position examples:

"center center" - Center both axes
"top left" - Top-left corner
"bottom right" - Bottom-right corner
"50% 20%" - Custom percentage positioning

Image tiling:

{
  imagePath = "pattern.png",
  imageRepeat = "repeat",  -- repeat, repeat-x, repeat-y, no-repeat, space, round
}

Image effects:

{
  imageTint = Color.new(1, 0, 0, 1),  -- Red tint overlay
  imageOpacity = 0.8,                   -- 80% opacity
}

See examples/image_showcase.lua for a comprehensive demonstration of all image features.

Creating Colors

local Color = FlexLove.Color
-- From RGB values (0-1 range)
local red = Color.new(1, 0, 0, 1)

-- From hex string
local blue = Color.fromHex("#0000FF")
local semiTransparent = Color.fromHex("#FF000080")

API Reference

Flexlove (Main Module)

Flexlove.init(props) - Initialize GUI system with base scale
Flexlove.new(props) - Create a new element
Flexlove.update(dt) - Update all elements
Flexlove.draw() - Draw all elements
Flexlove.resize() - Handle window resize

Color

Color.new(r, g, b, a) - Create color (values 0-1)
Color.fromHex(hex) - Create from hex string
Color:toHex() - Convert to hex string
Color:toRGBA() - Get RGBA values

Theme (only needed for dynamic changes)

Theme.load(name) - Load theme by name
Theme.setActive(name) - Set active theme
Theme.getActive() - Get current active theme

Animation

Animation.new(props) - Create custom animation
Animation.fade(duration, from, to) - Fade animation
Animation.scale(duration, from, to) - Scale animation

Compatibility

Compatibility:

Lua: 5.1+
LÖVE: 11.x (tested)
LuaJIT: Compatible

License

MIT License - see LICENSE file for details.

Contributing

This library is under active development. Contributions, bug reports, and feature requests are welcome!

README.md

FlexLöve
